Part 4: Specific Bone Pathology:

Diabetic foot, osteochondrosis, osteochondritis dissecans




Tends to occur at pressure points such as metatarsal heads, calcaneal tuberosity, malleoli and toes.

Soft tissue changes within 3 days:

  • soft tissue swelling and density
  • obliteration of normal soft tissue planes
  • radiolucent gas locules

Visible bony changes may be delayed; ill-defined radiolucency and osteolysis seen at 7-14 days

Cortical and bone destruction increases diagnostic accuracy

Periosteal reaction as pus elevates and strips periosteum

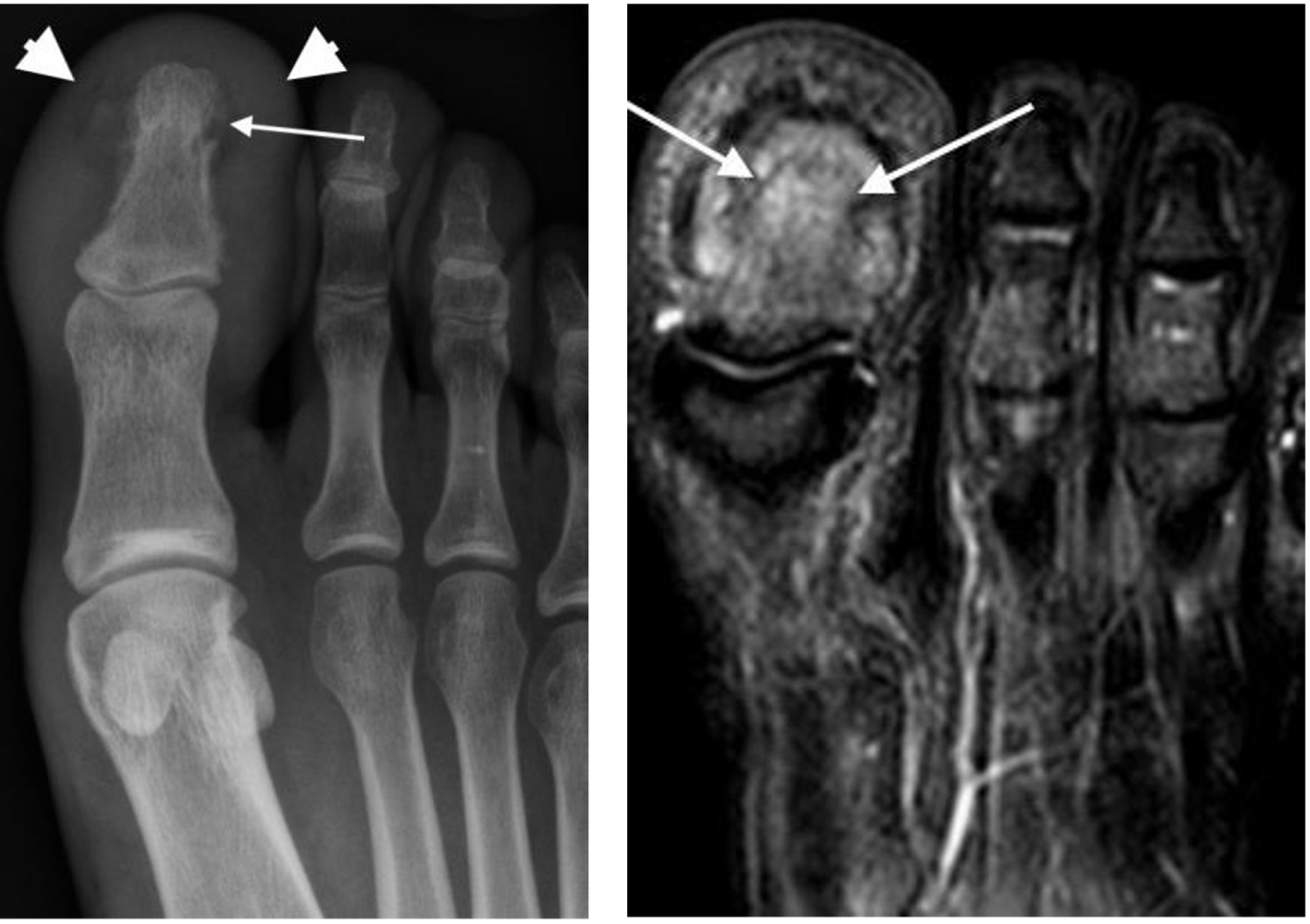

Osteomyelitis 1st toe distal phalanx with soft tissue swelling (arrowheads), osteolysis (arrow), periostitis and increased signal on STIR (fluid-sensitive) MRI

Progressive calcaneal osteomyelitis with ill-defined radiolucency progressing to bone destruction (arrows). Skin ulcers are apparent (arrowheads)

Sequestrum = necrotic bone seen as dense sclerotic fragment due to disruption of periosteal vascular supply; may be focus of continuing infection

Involucrum = layer of periosteal new bone seen as sclerotic osseous shell encapsulating the necrotic sequestrum

Cloaca = opening in involucrum allowing drainage of pus and necrotic material

Sinus = tract extending from infected bone to skin surface


Brodie’s abscess

Chronic, walled-off abscess containing debris and sometimes sequestrum.

Seen as radiolucent ovoid area surrounded by reactive sclerosis typically in the long bone metaphysis.

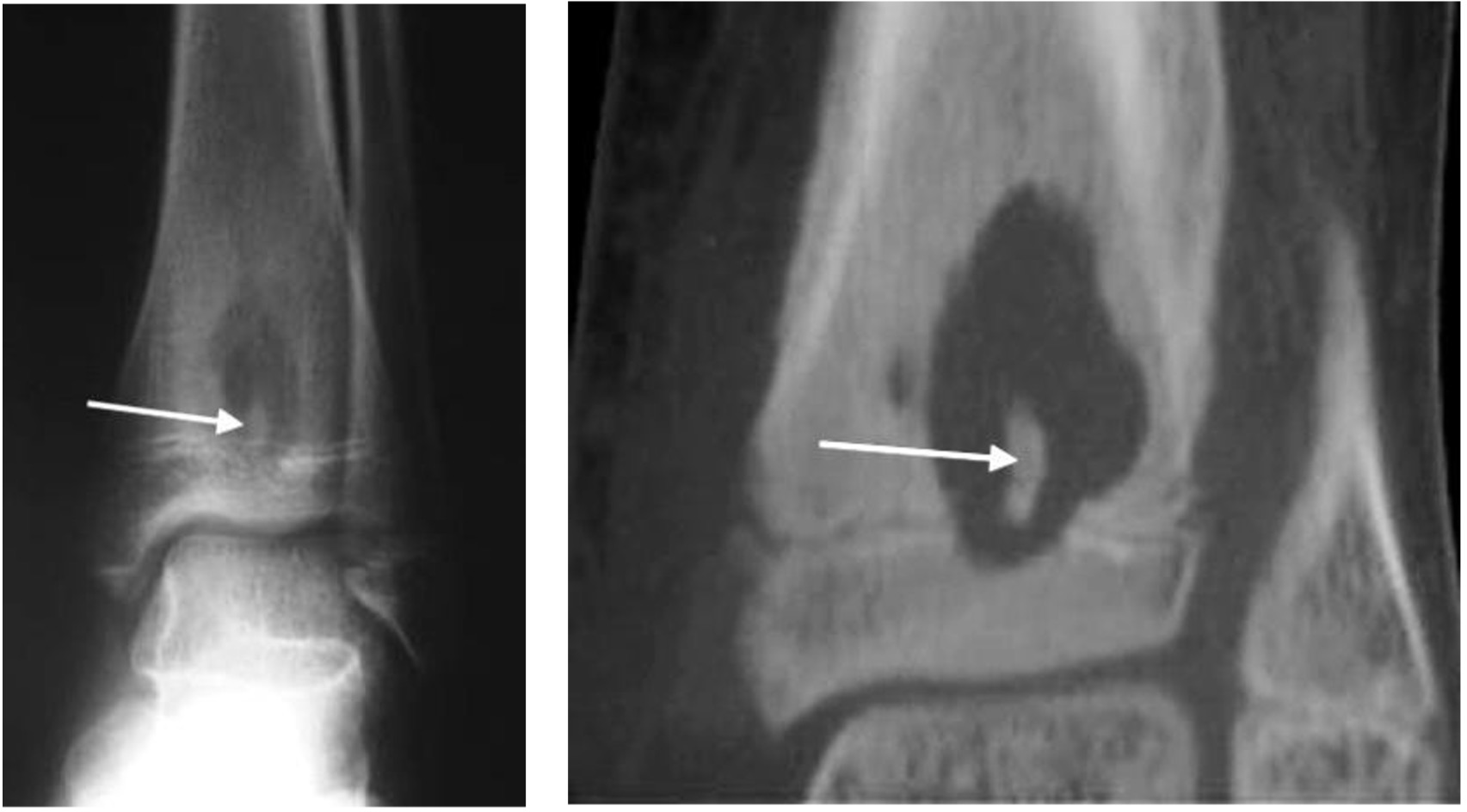

Abscess in distal tibia with sclerotic sequestrum on plain radiograph and CT (arrow)


Neuropathic or Charcot foot

Severe, destructive neuroarthropathy, often following minor or significant trauma; due to loss of sensation and proprioception. Involves the midfoot (60%), ankle (20%) or hindfoot (10%).

Radiographic features may be remembered by the following Ds:

  • Dense sclerotic subchondral bone
  • Degeneration
  • Destruction of the joint which is often severe
  • Debris which is made up of heterotopic new bone, bone fragmentation and loose bodies
  • Deformity
  • Dislocation (non-traumatic)

There may be minimal adjacent soft tissue abnormality.

Disease stage described using Eichenholtz classification: fragmentation, coalescence, consolidation.

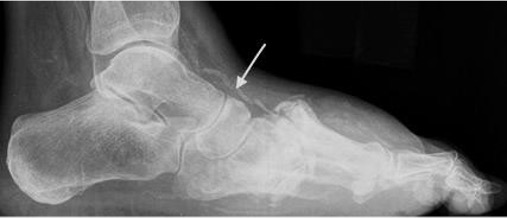

Diabetic Charcot foot centred at TMT joints with dense sclerotic bone, bony debris and dislocation. Note vascular calcification (arrow).

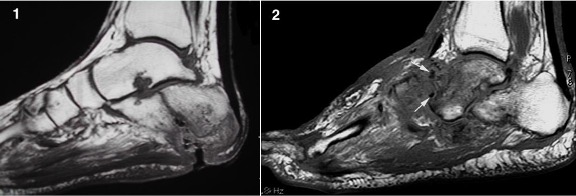

Fig 1: Osteomyelitis at calcaneal pressure point with marrow epicentre, cortical destruction and adjacent soft tissue ulcer.

Fig 2: Charcot midfoot with articular (TMTJ) epicentre, sclerotic bone fragments (arrows) and no soft tissue ulcer



Term used to describe a group of disorders that affect the immature skeleton.

Occurs in epiphysis or apophysis; includes traction apophysitis.

Aetiology possibly due to injury, repetitive trauma, overuse. Other factors may include vascular disturbance, genetic, endocrine or mechanical factors.

Seen as sclerosis, flattening, irregularity and possibly fragmentation of the epiphysis. With revascularisation, the epiphysis remodels, often with residual deformity.


Freiberg’s disease

Usually the second or third metatarsal heads

Flattening and sclerosis of the metatarsal head

Widening of the joint space due to the ‘eggshell crush’ degeneration of the metatarsal head

May result in secondary osteoarthritis

Freiberg’s disease with flattening and sclerosis of the 2nd metatarsal head (arrow)


Köhler’s disease

Involves navicular bone

Affects ages 2–10y

70% of cases are in males with familial incidence

The navicular becomes sclerotic and collapses into a disc shape Best seen on the oblique view

Kohler’s disease with flattening and sclerosis of the navicular (arrow)


Mueller-Weiss syndrome (aka Brailsford disease)

Although Kohler’s has been hinted as a potential cause, MWS is not truly an osteochondrosis.

Spontaneous, multifactorial, adult-onset, osteonecrosis of the navicular, 40-60y.

Sclerotic, comma-shaped navicular due to collapse of the lateral side.

Medial and/or dorsal navicular subluxation.

Lateral subluxation of the talar head, navicular split and fragmentation.

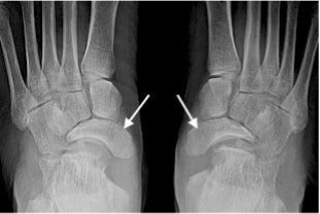

Mueller-Weiss syndrome with collapse of the lateral navicular and medial navicular subluxation


Sever’s disease

Calcaneal apophysitis, usually 8–12y. May be bilateral.

The posterior calcaneal apophysis appears irregular and sclerotic (although these findings can be normal).


Other rarer conditions

Iselin’s disease of the fifth metatarsal base

Buschke’s disease of the cuneiforms




Most common in children / adolescents.

Due to poor blood flow to subchondral bone.

Partial or complete detachment of an osteochondral fragment.

Usually involves the medial talar dome.

‘Subchondral halo’ outlining the osteochondral fragment.

Focal flattening and compression of talar dome. Osteochondral fragment within crater.

Displaced osteochondral fragment with focal concavity of talar dome and intra-articular bone fragment.

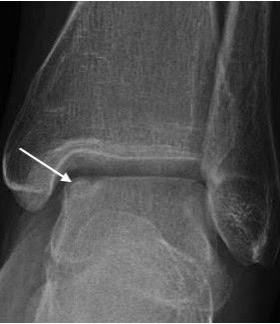

Osteochondritis dissecans medial talar dome (arrow)
